Product Details

Description



Pinout

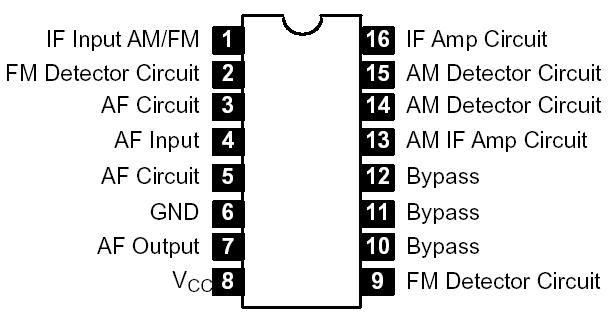

Connection Diagram


Specifications

Supply Voltage (VCC), V83 . . . . . . . . . . . . . . . . . . . . . . . . 7.5 V
Circuit Current, I7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20mA
Total Circuit Current, Itot. . . . . . . . . . . . . .  . . . . . . . . . . . . 40mA
Total Power Dissipation, PT  . . . . . . . . .  . . . . . . . . . . . . .300mW
Operating Temperature Range, Topr  . . . . . . . .20° to +75°C
Storage Temperature Range, Tstg  . . . . .. . . .65° to +150°C
