Product Details

Description



Features:

·Suitable for Low Level Input


Pinout

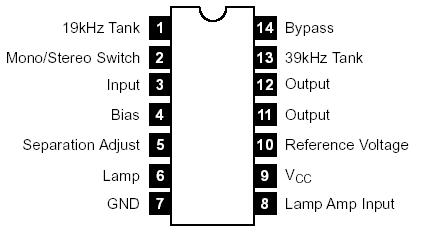

Connection Diagram


Specifications

Maximum Supply Voltage (V17, V67), VCCmax . . . . . . . . . . . . . . . . . . . . . 20V
Lamp Driving Current, IL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40mA
Allowable Power Dissipation (TA +80°C), PDmax  . . . . . . . . . . . . .. . .370mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . ..20° to +80°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . .. . . . .40° to +125°C


Description

The NTE1006 is an integrated circuit in a 14Lead DIP type package designed for use as an FM multiplex stereo demodulator. This device includes all the fundamental functions including a composite amp, doubler, decoder, separation controller, and lamp driver.
