NTE1005

Features: ·19kHz and 38kHz Coils·SCA Rejection Ratio: 50dB·No Special Adjusting Needed for SCA Rejecting·Also Seperation ControllerPinoutSpecificationsMaximum Supply Voltage (V17, V67), VCCmax . . . . . . . . . . . . . . . . . . . .20VLamp Driving Current, IL . . . . . . . . . . . . . . . . . . . ...

product image

NTE1005 Picture
See larger image
SeekIC No. : 004435862 Detail

NTE1005: Features: ·19kHz and 38kHz Coils·SCA Rejection Ratio: 50dB·No Special Adjusting Needed for SCA Rejecting·Also Seperation ControllerPinoutSpecificationsMaximum Supply Voltage (V17, V67), VCCmax . . ....

NTE1005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·19kHz and 38kHz Coils
·SCA Rejection Ratio: 50dB
·No Special Adjusting Needed for SCA Rejecting
·Also Seperation Controller

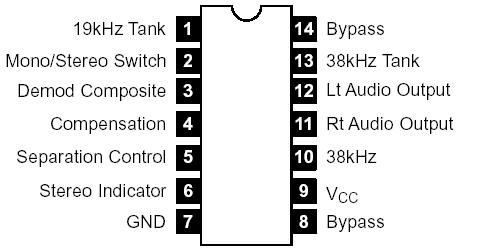

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage (V17, V67), VCCmax  . . . . . . . . . . . . . . . . . . . .20V
Lamp Driving Current, IL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Allowable Power Dissipation, PDmax  . . . . . . . . . . . . . . . . . . . . . . . . . .370mW
Operation Temperature Range, Topg  . . . . . . . . . . . . . . . . . .20° to +80°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . .40° to +125°C
