NT7703

Features: (Segment mode)`Shift Clock frequency: 14 MHz (Max.) (VDD = 5V ± 10%) 8 MHz (Max.) (VDD = 2.5V - 4.5V)`Adopts a data bus system`4-bit / 8-bit parallel input modes are selectable with a mode (MD) pin`Automatic transfer function with an enable signal`Automatic counting function when in ch...

product image

NT7703 Picture
See larger image
SeekIC No. : 004435835 Detail

NT7703: Features: (Segment mode)`Shift Clock frequency: 14 MHz (Max.) (VDD = 5V ± 10%) 8 MHz (Max.) (VDD = 2.5V - 4.5V)`Adopts a data bus system`4-bit / 8-bit parallel input modes are selectable with a mod...

NT7703 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NT7703
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

   (Segment mode)
`Shift Clock frequency:
   14 MHz (Max.) (VDD = 5V ± 10%)
   8 MHz (Max.) (VDD = 2.5V - 4.5V)
`Adopts a data bus system
`4-bit / 8-bit parallel input modes are selectable with a mode (MD) pin
`Automatic transfer function with an enable signal
`Automatic counting function when in "chip select" mode, which causes the internal clock to be stopped by automatically counting 160 bits of input data
   (Common mode)
`Shift clock frequency: 4.0MHz (Max.)
`Built-in 160-bits bidirectional shift register (divisible into 80-bits x 2)
`Available in a single mode (160-bits shift register) or in a dual mode (80-bits shift register x 2)
   1. Y1 Y160 Single mode
   2. Y160 Y1 Single mode
   3. Y1 Y80, Y81 Y160 Dual mode
   4. Y160 Y81, Y80 Y1 Dual mode
   The above 4 shift directions are pin-selectable
   (Both segment mode and common mode)
`Supply voltage for LCD drive: 15.0 to 30.0V
`Number of LCD driver outputs: 160
`Low output impedance
`Low power consumption
`Supply voltage for the logic system: +2.5 to +5.5V
`COMS process
`Package: Gold bump die / 186 Pin TCP (Tape Carrier Package)
`Not designed or rated as radiation hardened


Pinout

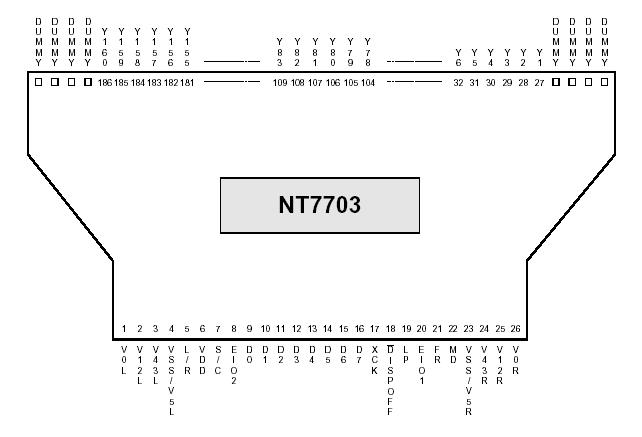

Connection Diagram


Specifications

DC Supply Voltage VDD . . . . . . . . . . . . -0.3V to +7.0V
DC Supply Voltage V0 . . . . . . . . . . . .. . -0.3V to +30V
Input Voltage . . . . . . . . . . . . . . .. -0.3V to VDD +0.3V
Operating Ambient Temperature . . -30°C to +85°C
Storage Temperature . . . . . . . . .. -45°C to +125°C


Description

The NT7703 is a 160-bit output segment/common driver LSI suitable for driving the large scale dot matrix LCD panels used by PDA's, personal computers and work stations for example. Through the use of COG technology, it is ideal for substantially decreasing the size of the frame section of the LCD module. It is good as both a segment driver and a common driver, and a low power consuming, highprecision LCD panel display can be assembled using the NT7703. In the segment mode, the data input is selected as 4bit parallel input mode or as 8bit parallel input mode by a mode (MD) pin. In common mode, the data input/output pins are bi-directional and the four data shift directions are pinselectable.
