Product Details

Description



Features:

` 3.0V to 3.6V operation
` 200 ns access time
` Low current operation
   -8 mA ICC active current @ 5 MHz (typ.)
   -20mA ICC standby current @ 5 MHz (typ.)
` Ultra low power operation
   -66 mW standby power @ 3.3V
   -50 mW active power @ 3.3V
` Surface mount package options|
   -32-pin TSOP
   -32-pin PLCC

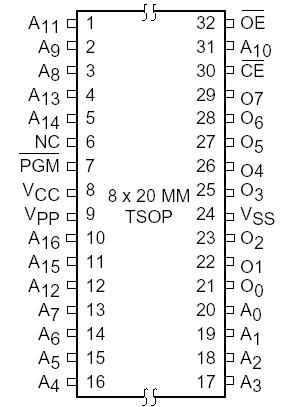

Pinout

Connection Diagram


Specifications

Storage Temperature . . . . . . . . . . . . .  -65°C to +150°C
All Input Voltages except A9 with
Respect to Ground (Note 10)  . . . . . . . . . . . . -0.6V to +7V
VPP and A9 with Respect to Ground . . . . . . -0.6V to +14V
VCC Supply Voltage with
Respect to Ground . . . . . . . . . . . . . . . . . . . .  -0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . .>2000V
All Output Voltages with . . . . . . . . . . . . . . . . . VCC + 1.0V
Respect to Ground (Note 10) . . . . .. . . . . . . to GND - 0.6V


Description

The NM27LV010 is a high performance Low Voltage Electrically Programmable Read Only Memory. It is manufactured using Fairchild's AMG™ EPROM technology. This technology allows the part to operate at speeds as fast as 200 ns.

This Low Voltage and Low Power EPROM is designed with power sensitive hand held and portable battery products in mind. NM27LV010 allows for code storage of firmware for applications like notebook computers, palm top computers, cellular phones, and HDD. Small outline packages are just as critical to portable applications of NM27LV010 as Low Voltage and Low Power.

The NM27LV010 is one member of Fairchild's growing Low Voltage product Family.
