NM27C256

Features: `High performance CMOS 120 ns access time`JEDEC standard pin configuration 28-pin DIP package 32-pin chip carrier`Drop-in replacement for 27C256 or 27256`Manufacturer's identification codePinoutSpecificationsStorage Temperature. . . . . . . . . . . . . . -65 to +150All Input Voltages ...

product image

NM27C256 Picture
See larger image
SeekIC No. : 004434858 Detail

NM27C256: Features: `High performance CMOS 120 ns access time`JEDEC standard pin configuration 28-pin DIP package 32-pin chip carrier`Drop-in replacement for 27C256 or 27256`Manufacturer's identification c...

NM27C256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NM27C256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High performance CMOS
   120 ns access time
`JEDEC standard pin configuration
   28-pin DIP package
   32-pin chip carrier
`Drop-in replacement for 27C256 or 27256
`Manufacturer's identification code

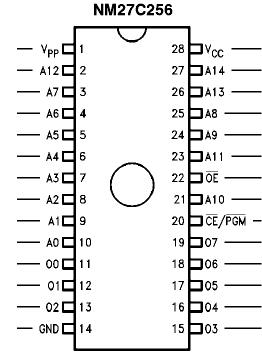

Pinout

Connection Diagram


Specifications

Storage Temperature . . . . . . . . . . . . . .  -65 to +150
All Input Voltages except A9 with
Respect to Ground  . . . . . . . . . . . . . . . . . . .-0.6V to +7V
VPP and A9 with Respect
to Ground . . . . . . . . . . . . . . . . . . . . . . . . . -0.7V to +14V
VCC Supply Voltage with
Respect to Ground  . . . . . . . . . . . . . . . . . . .-0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . .2000V
All Output Voltages with
Respect to Ground VCC  . . . . . . . . .  .+1.0V to GND -0.6V


Description

The NM27C256 is a 256K Electrically Programmable Read Only Memory. It is manufactured in National's latest CMOS split gate EPROM technology which enables it to operate at speeds as fast as 120 ns access time over the full operating range.

The NM27C256 provides microprocessor-based systems extensive storage capacity for large portions of operating system and application software. NM27C256 120 ns access time provides high speed operation with high-performance CPUs. The NM27C256 offers a single chip solution for the code storage requirements of 100% firmware-based equipment. Frequently-used software routines are quickly executed from EPROM storage, greatly enhancing system utility.

The NM27C256, is configured in the standard EPROM pinout which provides an easy upgrade path for systems which are currently using standard EPROMs.
