Product Details

Description



Features:

`High performance CMOS
   -100 ns access time
`Fast turn-off for microprocessor compatibility
`Simplified upgrade path
   -VPP and PGM are "Don't Care" during normal read operation
`Compatible with 27240 and 27C240 EPROMs
`JEDEC standard pin configuration
   -40-pin DIP package
   -44-pin PLCC package
`Manufacturer's identification code
`Fast programming algorithm


Pinout

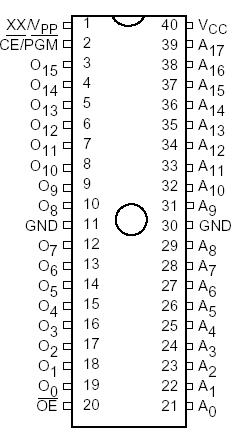

Connection Diagram


Specifications

Storage Temperature . . . . . . . . . . . . . . . -65°C to +150°C
All Input Voltages except A9 with
Respect to Ground (Note 10)  . . . . . . . . . . . . . ..-0.6V to +7V
VPP and A9 with
Respect to Ground . . . . . . . . . . . . . . . . . . . . .  -0.6V to +14V
VCC Supply Voltage with
Respect to Ground  . . . . . . . . . . . . . . . . . . . . . ..-0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>2000V
All Output Voltages with Respect
to Ground (Note 10) VCC  . . . . . . . . . . . + 1.0V to GND - 0.6V


Description

The NM27C240 is a high performance Electrically Programmable UV erasable ROM (EPROM). It contains 4,194,304 bits configured as 256k x 16 bits. NM27C240 is offered in both erasable versions for prototyping and early production applications as well as nonerasable, plastic packaged versions that are ideal for high volume and automated assembly applications.

The NM27C240 operates from a single 5V ±10% supply in the read mode.

The NM27C240 is offered in both DIP and surface mount packages. The DIP package is a 40-pin dual-in-line ceramic with a quartz window to allow erasing. The surface mount package is a 44-pin PLCC that is offered in OTP.

This EPROM NM27C240 is manufactured using Fairchild's proprietary AMG™ EPROM technology for an excellent combination of speed and economy while providing excellent reliability.
