NM27C210

Features: ` High performance CMOS -90 ns access time` Fast turn-off for microprocessor compatibility` Simplified upgrade path -VPP and PGM are Don't Care during normal read operation` Compatible with 27210 and 27C210 EPROMs` Manufacturer's identification code` Fast programming` JEDEC standard pi...

product image

NM27C210 Picture
See larger image
SeekIC No. : 004434856 Detail

NM27C210: Features: ` High performance CMOS -90 ns access time` Fast turn-off for microprocessor compatibility` Simplified upgrade path -VPP and PGM are Don't Care during normal read operation` Compatible w...

NM27C210 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NM27C210
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High performance CMOS
    -90 ns access time
` Fast turn-off for microprocessor compatibility
` Simplified upgrade path
    -VPP and PGM are "Don't Care" during normal read operation
` Compatible with 27210 and 27C210 EPROMs
` Manufacturer's identification code
` Fast programming
` JEDEC standard pin configuration
    -40-pin CDIP package
    -40-pin PDIP package
    -44-pin PLCC package


Pinout

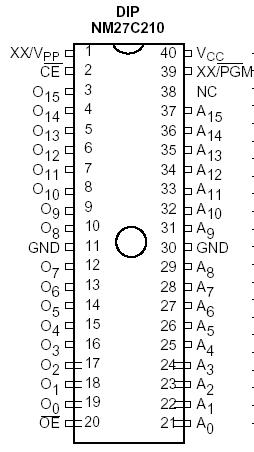

Connection Diagram


Specifications

Storage Temperature  . . . . . . . . . . . . . . . . . .-65°C to +150°C
All Input Voltages except A9 with
Respect to Ground (Note 10)  . . . . . . . . . . . . . . . . .-0.6V to +7V
VPP and A9 with Respect to Ground  . . . . . . . . . . -0.6V to +14V
VCC Supply Voltage with
Respect to Ground  . . . . . . . . . . . . . . . . . . . . . . . . -0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>2000V
All Output Voltages with
Respect to Ground (Note 10)  . . . . . . .VCC + 1.0V to GND - 0.6V


Description

The NM27C210 is a high performance Electrically Programmable UV erasable ROM (EPROM). It contains 1,048,576 bits configured as 64K x 16 bit. It is offered in both erasable versions for prototyping and early production applications as well as nonerasable, plastic packaged versions that are ideal for high volume and automated assembly applications.

The NM27C210 operates from a single 5 volt ±10% supply in the read mode.

The NM27C210 is offered in both DIP and surface mount packages. The DIP package is a 40-pin dual-in-line ceramic with a quartz window to allow erasing. The surface mount package is a 44-pin PLCC that is offered in OTP.

This EPROM NM27C210 is manufactured using Fairchild's proprietary AMG™ EPROM technology for an excellent combination of speed and economy while providing excellent reliability.
