Product Details

Description



Features:

`High performance CMOS
   -120, 150ns access time*
`Simplified upgrade path
   -VPP is a "Don't Care" during normal read operation
`Manufacturer's identification code
`JEDEC standard pin configuration
   -32-pin PDIP
   -32-pin PLCC
-32-pin CERDIP


Pinout

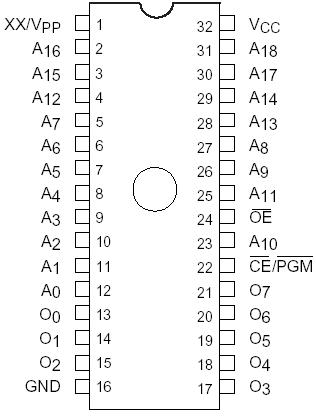

Connection Diagram


Specifications

Storage Temperature  . . . . . . . . . . . . . . .-65°C to +150°C
All Input Voltages except A9 with
Respect to Ground  . . . . . . . . . . . . . . . . . . . . . .-0.6V to +7V
VPP and A9 with Respect to Ground  . . . . . . . .-0.6V to +14V
VCC Supply Voltage with
Respect to Ground . . . . . . . . . . . . . . . . . . . .   . -0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . .... >2000V
All Output Voltages with
Respect to Ground VCC  . . . . . . . . . . . . .+1.0V to GND - 0.6V


Description

The NM27C040 is a high performance, 4,194,304-bit Electrically Programmable UV Erasable Read Only Memory. It is organized as 512K words of 8 bits each. Its pin-compatibility with byte-wide JEDEC EPROMs enables upgrades through 8 Mbit EPROMs. The "Don't Care" feature on VPP during read operations allows memory expansions from 1M to 8 Mbits with no printed circuit board changes.

The NM27C040 provides microprocessor-based systems extensive storage capacity for large portions of operating system and application software. NM27C040 120ns access time provides high speed operation with high-performance CPUs. The NM27C040 offers a single chip solution for the code storage requirements of 100% firmware-based equipment. Frequently used software routines are quickly executed from EPROM storage, greatly enhancing system utility.

The NM27C040 is manufactured using Fairchild's advanced CMOS AMG™ EPROM technology.
