NLB-310

Features: • Reliable, Low-Cost HBT Design• 12.7dB Gain, +12.6dBm P1dB@2GHz• High P1dB of +14.9dBm@6.0GHz and +13.1dBm@10.0GHz• Single Power Supply Operation• 50Ω I/O Matched for High Freq. UseApplication• Narrow and Broadband Commercial and Military Radio ...

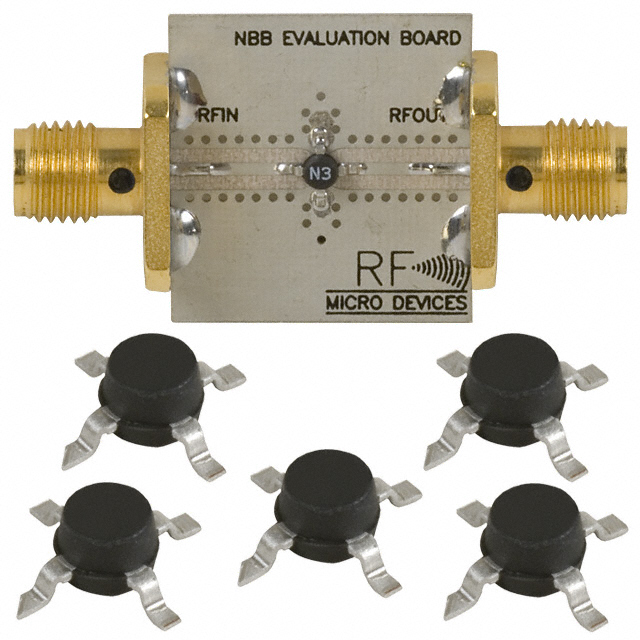

product image

NLB-310 Picture
See larger image
SeekIC No. : 004434769 Detail

NLB-310: Features: • Reliable, Low-Cost HBT Design• 12.7dB Gain, +12.6dBm P1dB@2GHz• High P1dB of +14.9dBm@6.0GHz and +13.1dBm@10.0GHz• Single Power Supply Operation• 50Ω ...

NLB-310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NLB-310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Reliable, Low-Cost HBT Design
• 12.7dB Gain, +12.6dBm P1dB@2GHz
• High P1dB of +14.9dBm@6.0GHz and +13.1dBm@10.0GHz
• Single Power Supply Operation
• 50Ω I/O Matched for High Freq. Use




Application

• Narrow and Broadband Commercial and Military Radio Designs
• Linear and Saturated Amplifiers
• Gain Stage or Driver Amplifiers for MWRadio/Optical Designs (PTP/PMP/LMDS/UNII/VSAT/WLAN/Cellular/DWDM)




Specifications

Series NLB
Frequency (MHz) DC to 10000
Gain (dB) 12 at 2000
NF (dB) 5.0
OP1dB (dBm) 12.6
IP1dB (dBm) 1.6
OIP3 (dBm) +28.9
Vcc (V) 4.4 to 4.8
Icc (mA) 50
Package/Size (Dim in mm) Plastic Micro-X


Parameter Rating Unit
RF Input Power
Power Dissipation
Device Current
Channel Temperature
Operating Temperature
Storage Temperature		 +20
300
70
200
-45 to +85
-65 to +150		 dBm
mW
mA
°C
°C
°C
Exceeding any one or a combination of these limits may cause permanent damage.




Description

The NLB-310 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs. This 50Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for small-signal applications. Designed with an external bias resistor, the NLB-310 provides flexibility and stability. The NLB-310 is packaged in a low-cost, surface-mount plastic package, providing ease of assembly for high-volume tape-and-reel requirements.
