Product Details

Description



Features:

• Excellent Performance RDSON < 5  at 5.0 V
• Matching between the Switches ±1.0
• 1.65 to 5.5 V Operating Range
• Reduced Threshold Voltages for LVTTL on Control Pine
• Eliminates the Need for Translators for Many Applications
• TTL Compatibility when VCC  is 5.0 V
• Can Operate with 1.8 V Inputs, if VCC is 3.0
• Also Meets Full CMOS Specifications
• Ultra−low charge Injection ± 7.5 PC
• Low Stand−by Power ICC = 1 nA (Max) at TA = 25°C
• Control Pins IN1, IN2, are Over Voltage Tollerant
• Pin for Pin replacement TC7WB66, NC7WB66, 74LVC2G56


Application

• Cell Phones
• PDAs
• Digital Still Cameras
• Video
• Digital Video


Pinout

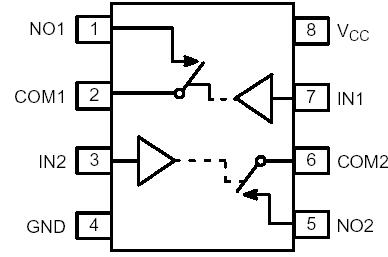

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage -0.5 to +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) -0.5 to +7.0 V
IIK DC Input Diode Current VI < GND -50 mA
IOK DC Output Diode Current VO = GND
VO = VCC		 -50

 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature Range -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Thermal Resistance SOT- 353 (Note 1)
SOT- 553		 250 °C/W
PD Power Dissipation in Still Air at 85°C 250 mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V0 @ 0.125 in



Description

The NL7WB66 is a very low RON dual SPST analog switch. RON is a of 5 (Typ) at 5.0 V. NL7WB66 is offered in the very popular low cost US8 package. NL7WB66 is designed as a general purpose dual switch and can be used to switch either analog signals such as audio and video or digital signal such as TTL, CMOS, LVDS, ECL, or complex digital signals such as QPSK.
