Features: • Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs and Outputs• LVTTL Compatible - Interface Capability with 5 V TTL Logic with VCC = 3 V• LVCMOS Compatible• 24 mA Balanced Output Sink and Source Capability• Near Zero Static Sup...
NL37WZ17: Features: • Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs and Outputs• LVTTL Compatible - Interface Capability with 5 V TTL Logic with VCC = 3 V• L...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | -0.5 VI +7.0 | V |
VO | DC Output Voltage Output in Higher or Low State (Note 1) | -0.5 VO +7.0 | V |
IIK | DC Input Diode Current VI < GND | -50 | mA |
IOK | DC Output Diode Current VO = GND VO = VCC |
-50 |
mA |
IOU | DC Output Sink Current | ±50 | mA |
ICC | DC Supply Current per Supply Pin | ±100 | mA |
IGND | DC Ground Current per Ground Pin | ±100 | mA |
TSTG | Storage Temperature Range | -65 to +150 | °C |
TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
TJ | Junction Temperature Under Bias | +150 | °C |
JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
333 | °C/W |
PD | Power Dissipation in Still Air at 85°C | 200 | mW |
MSL | Moisture Sensitivity | Level 1 | |
FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V0 @ 0.125 in | |
VESD | ESD Classification Human Body Model (Note 4) Machine Model (Note 5) Charge Device Model (Note 6) |
>2000 >200 N/A |
V |
Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum-rated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. IO absolute maximum rating must be observed.
2. Measured with minimum pad spacing on an FR4 board, using 10 mm-by-1 inch, 2-ounce copper trace with no air flow.
3. Tested to EIA/JESD22-A114-A.
4. Tested to EIA/JESD22-A115-A.
5. Tested to JESD22-C101-A.

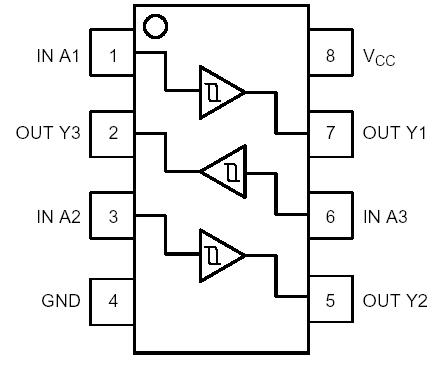

The NL37WZ17 is a high performance buffer with Schmitt-Trigger inputs operating from a 1.65 to 5.5 V supply.
The NL37WZ17 can be used as a line receiver which will receive slow input signals. The NL37WZ17 is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, it has a greater noise margin than conventional inverters.
The NL37WZ17 has hysteresis between the positive-going and the negative-going input thresholds (typically 1.0 V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
