Product Details

Description



Features:

• Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7WZ08
• Chip Complexity: FET = 124

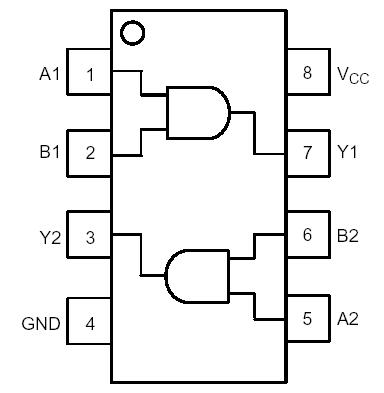

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage -0.5 to +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) -0.5 to VCC + 0.5 V
IIK DC Input Diode Current VI < GND −50 mA
IOK DC Output Diode Current VO = GND
VO = VCC		 −50

 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±50 mA
IGND DC Ground Current per Ground Pin ±50 mA
TSTG Storage Temperature Range −65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Thermal Resistance SOT- 353 (Note 1)
SOT- 553		 250 °C/W
PD Power Dissipation in Still Air at 85°C 250 mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in
ESD ESD Classification Human Body Model (Note 4)
Machine Model (Note 5)
Charge Device Model (Note 6)		 >2000
>200
N/A		 V
ILatchup Latchup PerformanceAbove VCC and Below GND at 85C (Note 6)
 ±500
 mA

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximumrated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mmby1 inch, 2ounce copper trace with no air flow.
2. Tested to EIA/JESD22A114A.
3. Tested to EIA/JESD22A115A.
4. Tested to JESD22C101A.
5. Tested to EIA/JESD78.




Description

The NL27WZ08 is a high performance dual 2input AND Gate operating from a 1.65 V to 5.5 V supply.
