NL27WZ07

• Extremely High Speed: tPD 2.3 ns (typical) at V_CC = 5.0 V
• Designed for 1.65 V to 5.5 V V_CC Operation, CMOS compatible
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability with 5.0 V TTL Logic with V_CC = 3.0 V
• LVCMOS Compatible
• 24 mA Output Sink Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Chip Complexity: FET = 72; Equivalent Gate = 18
• Pb−Free Packages are Available

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. IO absolute maximum rating must be observed.
2. Tested to EIA/JESD22−A114−A, rated to EIA/JESD22−A114−B.
3. Tested to EIA/JESD22−A115−A, rated to EIA/JESD22−A115−A.
4. Tested to JESD22−C101−A
5. Tested to EIA/JESD78

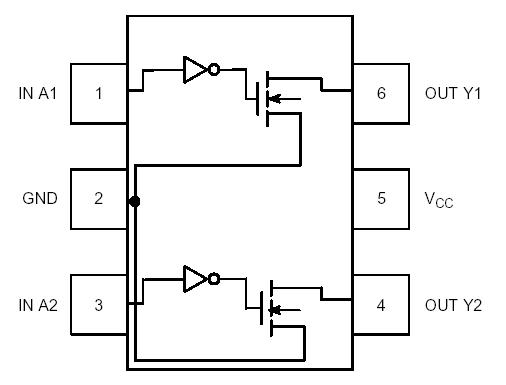

The NL27WZ07 is a high performance dual buffer with open drain outputs operating from a 1.65 to 5.5 V supply.

The internal circuit is composed of multiple stages, including an open drain output which provides the capability to set output switching level. This allows the NL27WZ07 to be used to interface 5 V circuits to circuits of any voltage between V_CC and 7.0 V using an external resistor and power supply.
