Features: • Extremely High Speed: tPD 2.4 ns (typical) at VCC = 5.0 V• Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs• LVTTL Compatible − Interface Capability With 5.0 V TTL Logic with VCC = 3.0 V• LVCMOS Compatible• 24 mA Output ...
NL27WZ06: Features: • Extremely High Speed: tPD 2.4 ns (typical) at VCC = 5.0 V• Designed for 1.65 V to 5.5 V VCC Operation• Over Voltage Tolerant Inputs• LVTTL Compatible − Inte...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | -0.5 VI +7.0 | V |
VO | DC Output Voltage Output in Higher or Low State (Note 1) | -0.5 VO +7.0 | V |
IIK | DC Input Diode Current VI < GND | -50 | mA |
IOK | DC Output Diode Current VO = GND VO = VCC |
-50 |
mA |
IOU | DC Output Sink Current | ±50 | mA |
ICC | DC Supply Current per Supply Pin | ±100 | mA |
IGND | DC Ground Current per Ground Pin | ±100 | mA |
TSTG | Storage Temperature Range | -65 to +150 | °C |
PD | Power Dissipation in Still Air at 85°C | 200 | mW |
JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
333 | °C/W |
TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
TJ | Junction Temperature Under Bias | +150 | °C |
VESD | ESD Classification Human Body Model (Note 4) Machine Model (Note 5) Charge Device Model (Note 6) |
>2000 >200 N/A |
V |
ILatchUp | LatchUp Performance Above VCC and Below GND at 85°C (Note 6) | ±500 | mA |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. IO absolute maximum rating must be observed.
2. Tested to EIA/JESD22−A114−A
3. Tested to EIA/JESD22−A115−A
4. Tested to JESD22−C101−A
5. Tested to EIA/JESD78

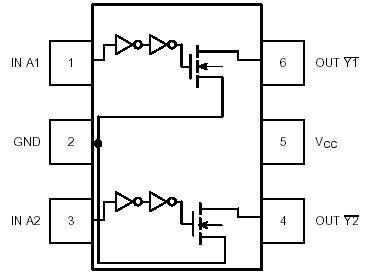

The NL27WZ06 is a high performance dual inverter with open drain outputs operating from a 1.65 V to 5.5 V supply.
The internal circuit is composed of multiple stages, including an open drain output which provides the capability to set output switching level. This allows the NL27WZ06 to be used to interface 5.0 V circuits to circuits of any voltage between VCC and 7.0 V using an external resistor and power supply.
