Product Details

Description



Features:

• Tiny SOT- 353 and SOT- 553 Packages
• 2.4 ns TPD at 5 V (typ)
• Source/Sink 24 mA at 3.0 V
• Over-Voltage Tolerant Inputs
• Pin For Pin with NC7SZ32P5X, TC7SZ32FU and TC7SZ32AFE
• Chip Complexity: FETs = 20
• Designed for 1.65 V to 5.5 V VCC Operation

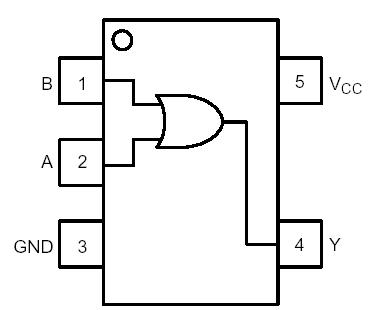

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage -0.5 to +7.0 V
VI DC Input Voltage -0.5 to +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) −0.5 to VCC +0.5 V
IIK DC Input Diode Current VI < GND ±50 mA
IOK DC Output Diode Current VO = GND
VO = VCC		 −50
+50
 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±50 mA
IGND DC Ground Current per Ground Pin ±50 mA
TSTG Storage Temperature Range −65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Thermal Resistance SOT- 353 (Note 1)
SOT- 553		 350
496		 °C/W
PD Power Dissipation in Still Air at 85°C SOT−353
SOT−553		 186
135		 mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in
ESD ESD Classification Human Body Model (Note 4)
Machine Model (Note 5)
Charge Device Model (Note 6)		 Class IC
Class A
N/A
 V

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum-rated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm-by-1 inch, 2-ounce copper trace with no air flow.
2. Tested to EIA/JESD22-A114-A, rated to EIA/JESD22-A114-B.
3. Tested to EIA/JESD22-A115-A, rated to EIA/JESD22-A115-A.
4. Tested to JESD22-C101-A.




Description

The NL17SZ32 is a single 2-input OR Gate in two tiny footprint packages. The device performs much as LCX multi-gate products in speed and drive. They should be used wherever the need for higher speed and drive are needed.
