Product Details

Description



Features:

• Tiny SOT- 353 and SOT- 553 Packages
• Source/Sink 24 mA at 3.0 V
• Over-Voltage Tolerant Inputs and Outputs
• Pin For Pin with NC7SZ14
• Designed for 1.65 V to 5.5 V VCC Operation
• Chip Complexity: FET = 20


Pinout

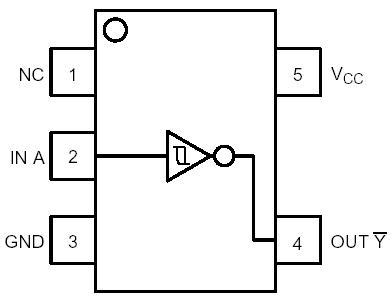

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage −0.5 to + 7.0 V
VI DC Input Voltage −0.5 VI +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) −0.5 VO +7.0 V
IIK DC Input Diode Current VI < GND −50 mA
IOK DC Output Diode Current VO = GND
VO = VCC		 −50
 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature Range −65 to +150 °C
PD Power Dissipation in Still Air SOT-353
SOT-553		 186
135		 °C
JA Thermal Resistance SOT- 353
SOT- 553		 350
496		 °C/W
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in
VESD ESD Classification Human Body Model (Note 3)
Machine Model (Note 4)
Charged Device Model (Note 5)		 Class IC
Class A
N/A
 V

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum-rated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm-by-1 inch, 2-ounce copper trace with no air flow.
2. Tested to EIA/JESD22-A114-A, rated to EIA/JESD22-A114-B.
3. Tested to EIA/JESD22-A115-A, rated to EIA/JESD22-A115-A.
4. Tested to JESD22-C101-A.




Description

The NL17SZ14 is a single inverter with Schmitt trigger in two tiny footprint packages. The device performs much as LCX multi-gate products in speed and drive.
