Product Details

Description



Features:

• Extremely High Speed: tPD 2.6 ns (typical) at VCC = 5.0 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Overvoltage Tolerant Inputs and Outputs
• LVTTL Compatible − Interface Capability With 5.0 V TTL Logic with VCC = 3.0 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• 3−State OE Input is Active−Low
• Replacement for NC7SZ125
• Chip Complexity = 36 FETs
• Pb−Free Package is Available



Pinout

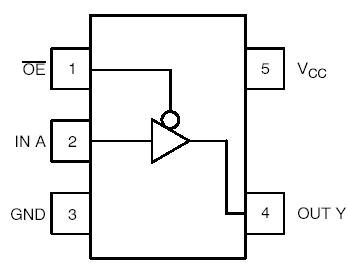

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage −0.5 to +7.0 V
VIN DC Input Voltage −0.5 to +7.0 V
VOUT DC Output Voltage −0.5 to +7.0 V
IIK DC Input Diode Current −50 mA
IOK DC Output Diode Current −50 mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
TSTG Storage Temperature Range −65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Power Dissipation in Still Air at 85°C 350 °C/W
PD Power Dissipation in Still Air at 85°C 150 mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in
VESD ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4)
>2000
>200
N/A
V

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2 ounce copper trace with no air flow.
2. Tested to EIA/JESD22−A114−A.
3. Tested to EIA/JESD22−A115−A.
4. Tested to JESD22−C101−A.




Description

The NL17SZ125 is a high performance non−inverting buffer operating from a 1.65 V to 5.5 V supply.
