NL17SZ04

Features: • Tiny SOT−353 and SOT−553 Packages• 24 mA Sink and Source Output Capability• Over−Voltage Tolerant Inputs and Outputs• Pin For Pin with NC7SZ04P5X, TC7SZ04FU and TC7SZ04AFE• Chip Complexity: FETs = 20• Designed for 1.65 V to 5.5 V VC...

product image

NL17SZ04 Picture
SeekIC No. : 004434682 Detail

NL17SZ04: Features: • Tiny SOT−353 and SOT−553 Packages• 24 mA Sink and Source Output Capability• Over−Voltage Tolerant Inputs and Outputs• Pin For Pin with NC7SZ04P5...

floor Price/Ceiling Price

Part Number:
NL17SZ04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Tiny SOT−353 and SOT−553 Packages
• 24 mA Sink and Source Output Capability
• Over−Voltage Tolerant Inputs and Outputs
• Pin For Pin with NC7SZ04P5X, TC7SZ04FU and TC7SZ04AFE
• Chip Complexity: FETs = 20
• Designed for 1.65 V to 5.5 V VCC Operation
• Pb−Free Packages are Available



Pinout

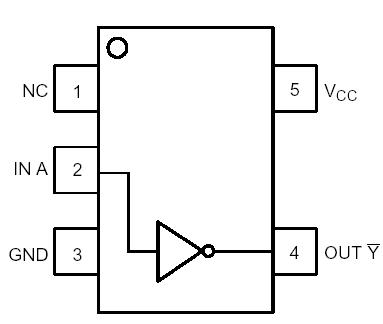

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage −0.5 to + 7.0 V
VI DC Input Voltage −0.5 VI +7.0 V
VO DC Output Voltage Output in Higher or Low State (Note 1) −0.5 VO +7.0 V
IIK DC Input Diode Current VI < GND −50 mA
IOK DC Output Diode Current VO = GND
VO = VCC
−50
mA
IOU DC Output Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature Range −65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds 260 °C
TJ Junction Temperature Under Bias +150 °C
JA Power Dissipation in Still Air at 85°C SOT−353 (Note 2)
SOT−553
350
496
°C/W
PD Power Dissipation in Still Air at 85°C SOT−353
SOT−553
186
135
mW
MSL Moisture Sensitivity Level 1
FR Flammability Rating Oxygen Index: 28 to 34 UL 94 V−0 @ 0.125 in
VESD ESD Classification Human Body Model (Note 3)
Machine Model (Note 4)
Charged Device Model (Note 5)
Class IC
Class A
N/A
V

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. IO absolute maximum rating must be observed.
2. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2−ounce copper trace with no air flow.
3. Tested to EIA/JESD22−A114−A, rated to EIA/JESD22−A114−B.
4. Tested to EIA/JESD22−A115−A, rated to EIA/JESD22−A115−A.
5. Tested to JESD22−C101−A.




Description

The NL17SZ04 is an inverter in two tiny footprint packages. The device performs much as LCX multi−gate products in speed and drive.
