NL17SV16XV5T2

Logic Type: Buffer/Line Driver, Non-Inverting
Number of Elements: 1
Number of Bits per Element: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Current - Output High, Low: 24mA, 24mA
Package / Case: SOT-553
Packaging: Tape & Reel (TR)
Manufacturer: ON Semiconductor
Voltage - Supply: 0.9 V ~ 3.6 V
Supplier Device Package: SOT-553
Series: 17SV


Features:

• Extremely High Speed: 1.5 ns (Typ) at V_CC = 3.3 V
• Designed for 0.9 V to 3.6 V Operation
• Over Voltage Tolerance* (OVT) Input Permits Logic Translation
• Balanced ±24 mA Output Drive @ 3.3 Volts
• Near Zero Static Supply Current
• Ultra−Tiny SOT−553 5 Pin Package only 1.6 x 1.6 mm Footprint


Application

• Cellular
• Digital Camera
• PDA
• Digital Video

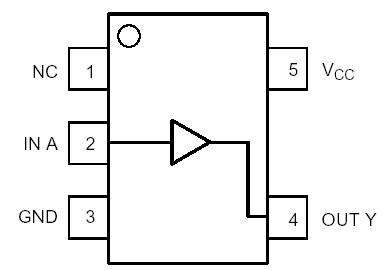

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	−0.5 to + 4.6	V
VIN	DC Input Voltage	−0.5 to + 4.6	V
VOUT	DC Output Voltage	−0.5 to VCC +0.5	V
IIK	DC Input Diode Current VI < GND	±50	mA
IOK	DC Output Diode Current VO = GND VO = VCC	−50 +50	mA
IOU	DC Output Sink Current	±50	mA
ICC	DC Supply Current per Supply Pin	±50	mA
IGND	DC Ground Current per Ground Pin	±50	mA
TSTG	Storage Temperature Range	−65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds	260	°C
TJ	Junction Temperature Under Bias	+150	°C
JA	Power Dissipation in Still Air at 85°C	250	°C/W
PD	Power Dissipation in Still Air at 85°C	250	mW
MSL	Moisture Sensitivity	Level 1
FR	Flammability Rating Oxygen Index: 28 to 34	UL 94 V−0 @ 0.125 in
VESD	ESD Withstand Voltage Human Body Model (Note 2) Machine Model (Note 3)	2000 300	V

Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum−rated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2 ounce copper trace no air flow.
2. Tested to EIA/JESD22−A114−A.
3. Tested to EIA/JESD22−A115−A.

Description

The NL17SV16XV5T2 is an ultra−high performance single Buffer fabricated in sub−micron silicon gate (0.35 ) CMOS technology with excellent performance down to 0.9 V. This device is ideal for extremely high−speed and high−drive applications. Additionally, limitations of board space are no longer a constraint. The very small SOT−553 makes this device fit most tight designs and spaces.

The internal circuit is composed of three stages; including a buffered output which provides high noise immunity and stable output. The NL17SV16XV5T2 input structure provides protection when voltages up to 3.6 V are applied.

Parameters:

Technical/Catalog Information	NL17SV16XV5T2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Buffer, Non-Inverting
Package / Case	SOT-553-5
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	1 - Single
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	0.9 V ~ 3.6 V
Current - Output High, Low	24mA, 24mA
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NL17SV16XV5T2 NL17SV16XV5T2
