NL17SV08XV5T2

Number of Circuits: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Number of Inputs: 2
Features: -
Logic Type: AND Gate
Logic Level - Low: 0.7 V ~ 0.8 V
Logic Level - High: 1.6 V ~ 2 V
Current - Output High, Low: 24mA, 24mA
Package / Case: SOT-553
Packaging: Tape & Reel (TR)
Supplier Device Package: SOT-553
Manufacturer: ON Semiconductor
Voltage - Supply: 0.9 V ~ 3.6 V
Current - Quiescent (Max): 0.9µA
Max Propagation Delay @ V, Max CL: 2.3ns @ 2.7V ~ 3.6V, 30pF
Series: 17SV


Features:

• Extremely High Speed: tPD = 1.0 ns (Typ) @ V_CC = 3.3 V
• Designed for 0.9 to 3.3 V Operation
• Overvoltage Tolerance (OVT)* Input Pins Permit Logic Translation
• Balanced ±24 mA Output Drive @ 3.3 Volts
• Near Zero Static Supply Current
• Ultra−Tiny SOT−553 5 Pin Package Only 1.6 x 1.6 x 0.6 mm
• All Devices in Package SOT−553 are Inherently Pb−Free**

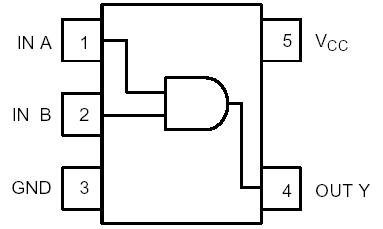

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	−0.5 to + 4.6	V
VI	DC Input Voltage	−0.5 to + 4.6	V
VO	DC Output Voltage Output in Higher or Low State (Note 1)	−0.5 to VCC +0.5	V
IIK	DC Input Diode Current VI < GND	±50	mA
IOK	DC Output Diode Current VO = GND VO = VCC	−50 +50	mA
IOU	DC Output Sink Current	±50	mA
ICC	DC Supply Current per Supply Pin	±50	mA
IGND	DC Ground Current per Ground Pin	±50	mA
TSTG	Storage Temperature Range	−65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds	260	°C
TJ	Junction Temperature Under Bias	+150	°C/W
JA	Thermal Resistance	250	°C
PD	Power Dissipation in Still Air at 85°C	250	mW
MSL	Moisture Sensitivity	Level 1
FR	Flammability Rating Oxygen Index: 28 to 34	UL 94 V−0 @ 0.125 in

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2 ounce copper trace no air flow.

Description

The NL17SV08 is an ultra−high performance 2−Input AND gate manufactured in 0.35 CMOS technology with excellent performance down to 0.9 volts. NL17SV08XV5T2 is ideal for extremely high−speed and high−drive applications. Additionally, limitations of board space are no longer a constraint. The very small SOT−553 makes this device fit most tight designs and spaces.

Parameters:

Technical/Catalog Information	NL17SV08XV5T2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SOT-553, SOT-5
Logic Type	AND Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	24mA, 24mA
Supply Voltage	0.9 V ~ 3.6 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	0.9 V ~ 3.6 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NL17SV08XV5T2 NL17SV08XV5T2 NL17SV08XV5T2OS ND NL17SV08XV5T2OSND NL17SV08XV5T2OS
