NL17SV04XV5T2

Propagation Delay Time :
Minimum Operating Temperature :
Operating Temperature Range :
Packaging : Reel
Maximum Operating Temperature : + 85 C
Logic Type : CMOS
Number of Circuits : 1
Supply Voltage - Max : 3.6 V
Supply Voltage - Min : 0.9 V
Logic Family : VCX
High Level Output Current : - 18 mA
Low Level Output Current : 18 mA
Package / Case : SOT-553-5


Features:

· Extremely High Speed: t PD = 1.0 ns (Typ) @ V _CC  = 3.3 V
· Designed for 0.9 to 3.6 V Operation
· Overvoltage Tolerance (OVT)* Input Pins Permits Logic Translation
· Balanced 24 mA Output Drive @ V_CC 3.3 Volts
· Near Zero Static Supply Current
· Ultra-Tiny SOT-553 5 Pin Package only 1.6 x 1.6 x 0.6 mm
· All Devices in Package SOT-553 are Inherently Pb-Free**


Application

·Cellular
·Digital Camera
·PDA
·Digital Video

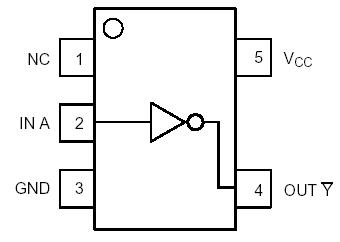

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	−0.5 to + 4.6	V
VIN	DC Input Voltage	−0.5 to + 4.6	V
VOUT	DC Output Voltage	−0.5 to VCC +0.5	V
IIK	DC Input Diode Current VI < GND	±50	mA
IOK	DC Output Diode Current VO = GND VO = VCC	−50 +50	mA
IOU	DC Output Sink Current	±50	mA
ICC	DC Supply Current per Supply Pin	±50	mA
IGND	DC Ground Current per Ground Pin	±50	mA
TSTG	Storage Temperature Range	−65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds	260	°C
TJ	Junction Temperature Under Bias	+150	°C
JA	Power Dissipation in Still Air at 85°C	250	°C/W
PD	Power Dissipation in Still Air at 85°C	250	mW
MSL	Moisture Sensitivity	Level 1
FR	Flammability Rating Oxygen Index: 28 to 34	UL 94 V−0 @ 0.125 in
VESD	ESD Withstand Voltage Human Body Model (Note 2) Machine Model (Note 3)	4000 150	V

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1.Measured with minimum pad spacing on an FR4 board, using 10 mm-by-1 inch, 2 ounce copper trace no air flow.
2.Tested to EIA/JESD22-A114-A.
3.Tested to EIA/JESD22-A115-A.

Description

The NL17SV04 is an ultra-high performance inverter manufactured in 0.35 m technology, with excellent performance down to 0.9 V.

NL17SV04XV5T2 is ideal for extremely high speed and high-drive applications. Additionally, limitations of board space are no longer a constraint. The very small SOT?553 makes this device fit most tight designs and spaces.

Parameters:

Technical/Catalog Information	NL17SV04XV5T2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SOT-553, SOT-5
Logic Type	Inverter
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	24mA, 24mA
Supply Voltage	0.9 V ~ 3.6 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	0.9 V ~ 3.6 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NL17SV04XV5T2 NL17SV04XV5T2
