Features:

· Operating Voltage 9.0V
· 4-input 3-output 3-Circuits (Y, Pb, and Pr signal)
· Wide frequency range 0dB at 50MHz typ.
· Internal 6dB amplifier (Selectable Bypass or 6dB)
· External logic discernment terminal
· External logic control terminal
· Selectable slave address
· Power Save Circuit
· I2C BUS control
· Bi-CMOS Technology
· Package Outline QFP48

Pinout

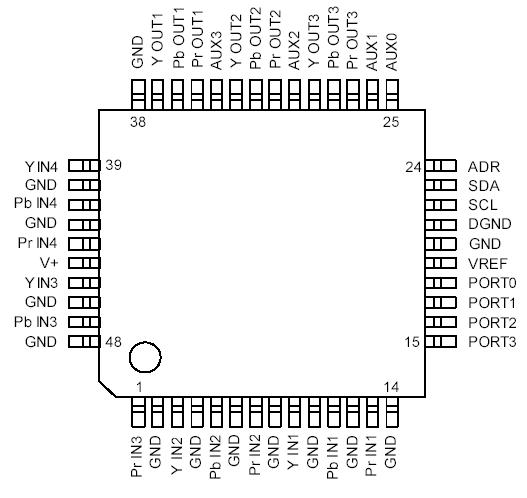

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V⁺	12.0	V
Power Dissipation	P_D	1875(note)	mW
Operating Temperature	T_opr	-25 to +75	°C
Storage Temperature	T_stg	-40 to +150	°C

(Note) At on a board of EIA/JEDEC specification. (76.2 × 114.3 × 1.6mm Two layers, FR-4)

Description

The NJW1320 is a Wide Band Video Switch with I2C BUS.The NJW1320 includes switch of 4-input 3-output and 6dB amplifier. It is suitable for Y, Pb, and Pr signal because frequency range is 50MHz.The NJW1320 includes external logic control terminals and external logic discernment terminals. The NJW1320 is suitable for PTV, DTV, PDP and other high quality AV systems.
