Features:

·Operating Voltage V+ =2.7V to 5.3V
·Operating Current 5mA typ. at V+ =5V
·Output for HD,VD,C sync
·unnecessary adjustment of oscillation frequency for internal count down circuit
·Internal BGP
·Bi-CMOS Technology
·Package Outline SSOP14




Pinout

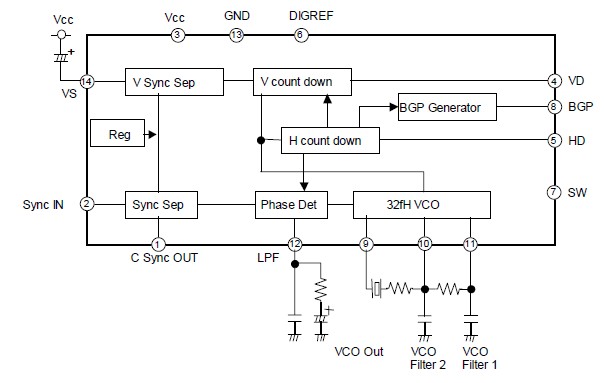

Connection Diagram


Specifications

Parameter
Symbol
 RATINGS
Unit
Supply Voltage
V+
 8.0
V
Power Dissipation
PD
 300
mW
Operating temperature
Topr
 -40 to +85
Storage temperature
Tstg
 -40 to +125



Description

The NJW1303 is a synchronous separator performs Horizontal and Vertical synchronous signal from composit video signals. It contains count down circuit for H,V keeping high sync separation in the weak signal. It is suitable for car navigation and LCD TV.
