NJW1191

Features: ·Operating Voltage 7.5 to 13V ·I2C BUS Interface ·Low Output Noise -103dBVtyp ·Low Distortion 0.01%typ ·4ch Input Selector ·Loudness ·Tone Control Bass / Treble ·Main Volume ·Balance & Fader ·Bi-CMOS Technology ·Package Outline SSOP32 PinoutSpecifications PARAMETER SYMBOL RATI...

product image

NJW1191 Picture
See larger image
SeekIC No. : 004434653 Detail

NJW1191: Features: ·Operating Voltage 7.5 to 13V ·I2C BUS Interface ·Low Output Noise -103dBVtyp ·Low Distortion 0.01%typ ·4ch Input Selector ·Loudness ·Tone Control Bass / Treble ·Main Volume ·Balance &...

NJW1191 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1191
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage  7.5 to 13V
·I2C BUS Interface
·Low Output Noise  -103dBVtyp
·Low Distortion   0.01%typ
·4ch Input Selector
·Loudness
·Tone Control    Bass / Treble
·Main Volume
·Balance & Fader
·Bi-CMOS Technology
·Package Outline  SSOP32


Pinout

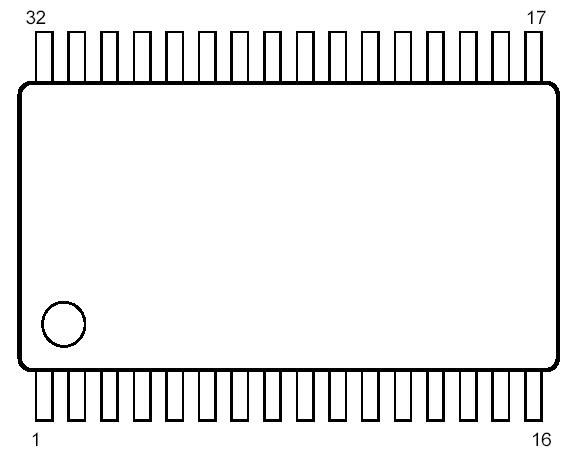

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 15 V
Power Dissipation PD 800 mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C
NOTE: EIA/JEDEC STANDARD Test board (76.2x114.3x1.6mm, 2layer, FR-4) mounting


Description

NJW1191 is 4-channel  Electronic Volume with input  selector. It includes main volume, balance and fader trim, 4  inputs selector, loudness and tone control.

NJW1191 performs low noise and  low distortion  characteristics with resistance ladder type electrical volume.    All of internal status and variables are controlled by I2C BUS  interface.
