NJW1173

Features: ·Operating Voltage 8 to 13V·I2C BUS Interface·Fast mode applicable, 3V I/F applicable)·Low Output Noise·AGC Circuit (Selectable 4-stage compression level via I2C BUS)· eala (NJRC Surround)·Simulated Surround·Bi-CMOS Technology·Package Outline SSOP20PinoutSpecifications PARAMETER S...

product image

NJW1173 Picture
See larger image
SeekIC No. : 004434649 Detail

NJW1173: Features: ·Operating Voltage 8 to 13V·I2C BUS Interface·Fast mode applicable, 3V I/F applicable)·Low Output Noise·AGC Circuit (Selectable 4-stage compression level via I2C BUS)· eala (NJRC Surround...

NJW1173 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1173
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage 8 to 13V
·I2C BUS Interface
·Fast mode applicable, 3V I/F applicable)
·Low Output Noise
·AGC Circuit (Selectable 4-stage compression level via I2C BUS)
·"eala" (NJRC Surround)
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SSOP20


Pinout

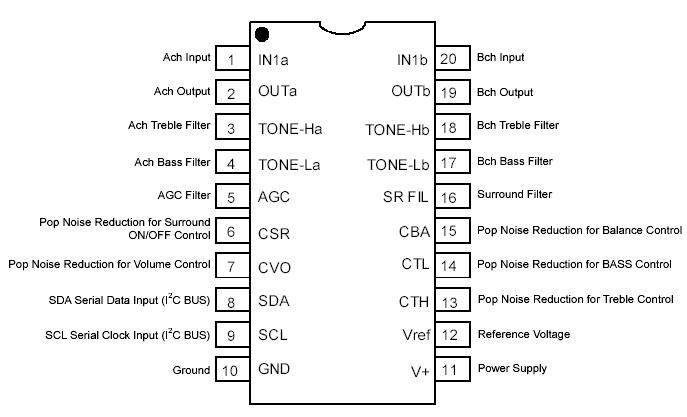

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 15 V
Power Dissipation PD 350 mW
Operating Temperature Range Topr -20 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJW1173 is an audio processor which includes volume, balance, tone control, surround, simulated stereo and AGC function.

Also the NJW1173 features high precision characteristics about channel balance, it is less than ±1.0dB at 70dB attenuation.

All of internal status and variables of NJW1173 are controlled by I2C BUS. It is suitable for any TV set.
