NJW1166

Features: ·Operating Voltage 8 to 13V·3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch)·LPF Filter (Adjustable cut off frequency by external parts)·AGC Circuit (It reduces volume difference among input sources.)·Adjustable AGC boost level by external parts and AGC compression level by I2C ...

product image

NJW1166 Picture
See larger image
SeekIC No. : 004434645 Detail

NJW1166: Features: ·Operating Voltage 8 to 13V·3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch)·LPF Filter (Adjustable cut off frequency by external parts)·AGC Circuit (It reduces volume difference ...

NJW1166 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1166
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage 8 to 13V
·3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch)
·LPF Filter (Adjustable cut off frequency by external parts)
·AGC Circuit (It reduces volume difference among input sources.)
·Adjustable AGC boost level by external parts and AGC compression level by I2C BUS
·eala(NJRC Original Surround System)
·Simulated Stereo
·I2C BUS Interface
·Bi-CMOS Technology
·Package Outline SDIP32

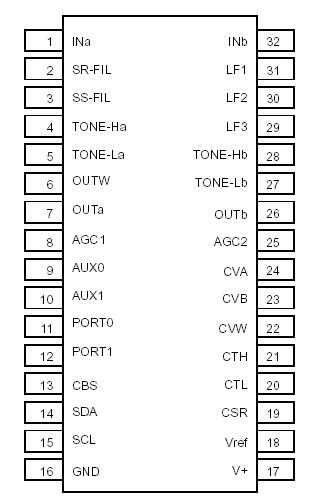

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 15 V
Power Dissipation PD 700 mW
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJW1166 is a sound processor with subwoofer output includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1166 includes the LPF for subwoofer output and bass boost function.

The original surround system of NJW1166 reproduces natural surround sound and clear vocal orientation.

All of internal status and variables of NJW1166 are controlled by I2C BUS interface.
