Product Details

Description

Features:

·Operating Voltage 7.5 to 13V
·I²C BUS Interface
·eala (NJRC Original Surround)
·AGC Circuit (It reduces volume difference among input sources.)
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SDIP30, SDMP30

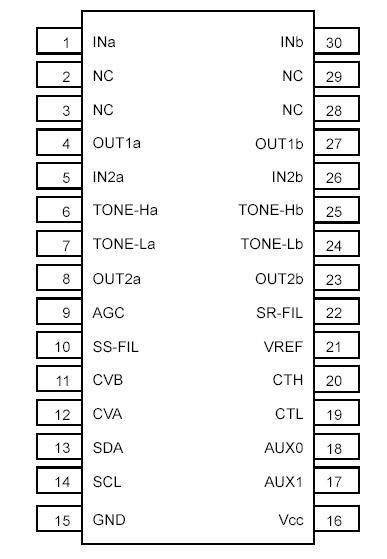

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply Voltage	V⁺	15	V
Power Dissipation	P_D	700	mW
Operating Temperature Range	T_opr	-20 to +85	°C
Storage Temperature Range	T_stg	-40 to +125	°C

Description

The NJW1165 is an audio processor. It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, NJRC original surround, and AGC functions.

The NJRC NJW1165L original surround system reproduces natural surround sound and clear vocal orientation. All of internal status and variables are controlled by I²C BUS interface.
