NJW1163AL

Processors - Application Specialized EALA Audio Processor w/Subwoofer Output

product image

NJW1163AL Picture
See larger image
SeekIC No. : 00385209 Detail

NJW1163AL: Processors - Application Specialized EALA Audio Processor w/Subwoofer Output

NJW1163AL Data Sheet

floor Price/Ceiling Price

US $ 1.05~1.13 / Piece | Get Latest Price
Part Number:
NJW1163AL
Mfg:
NJR
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • 1000~2000
  • Unit Price
  • $1.13
  • $1.05
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Audio Processor Maximum Operating Temperature : + 75 C
Mounting Style : Through Hole Package / Case : SDIP-32
Packaging : Tube

Description

Operating Supply Voltage :
Type : Audio Processor
Packaging : Tube
Mounting Style : Through Hole
Maximum Operating Temperature : + 75 C
Package / Case : SDIP-32


Features:

·Operating Voltage 7.5 to 13V
·3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch)
·LPF Filter (Adjustable cut off frequency by external parts)
·AGC Circuit (It reduces volume difference among input sources.)
·Adjustable AGC boost level by external parts and AGC compression level by I2C BUS eala(NJRC Original Surround System)
·Simulated Stereo
·I2C BUS Interface
·Bi-CMOS Technology
·Package Outline NJW1163: SSOP32 NJW1163A: SDIP32


Pinout

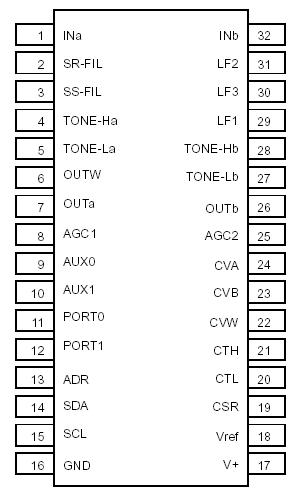

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 15 V
Power Dissipation PD 700 mW
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJW1163/A is a sound processor with subwoofer output includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1163/A includes the LPF for subwoofer output and bass boost function.

The original surround system of NJW1163AL reproduces natural surround sound and clear vocal orientation.

All of internal status and variables of NJW1163AL are controlled by I2C BUS interface.
