Product Details

Description

Features:

·Operating Voltage 7.5 to 13V
·I²C BUS Interface
·AGC Circuit (It reduces volume difference among input sources.)
·SRS 3D Stereo
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SDIP30, SDMP30

Pinout

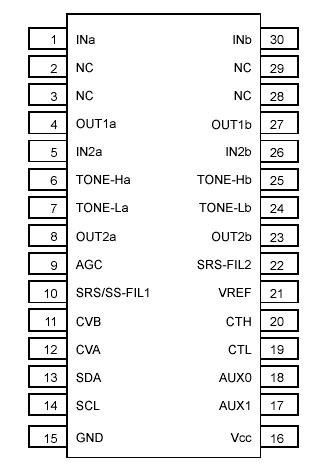

Connection Diagram

Specifications

Parameter	Symbol	Rating	Units
Power Supply Voltage	V⁺	14	V
Power Dissipation	P_D	700	W
Operating Temperature Range	T_opr	-20 to +75	°C
Storage Temperature	T_stg	-40 to +125	°C

Description

The NJW1161 is an audio processor that includes SRS 3D stereo. It includes all of the audio signal processing functions for TV such as tone control, balance, volume, mute, and AGC.

The SRS 3D stereo technology of NJW1161L reproduces a 3D stereo surround sound effect using only two speakers.

All of internal status and variables of NJW1161L are controlled by I²C BUS interface.
