Product Details

Description



Features:

·Operating Voltage 7.5 to 13V
·I2C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·AGC Circuit (It reduces volume difference among input sources.)
·SRS 3D Stereo
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SDIP30, SDMP30

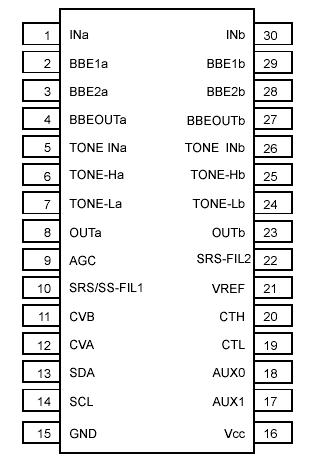

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Units
Power Supply Voltage V+ 14 V
Power Dissipation PD 700 W
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Tstg -40 to +125 °C



Description

The NJW1160 is an audio processor that includes Sound enhancement (BBE) and SRS 3D Stereo. It includes all of the audio signal processing functions for TV such as tone control, balance, volume, mute, and AGC .

The SRS 3D stereo technology reproduces 3D stereo surround sound effect using only two speakers.

The sound enhancement of NJW1160M regenerates high definitive and nearly real sound.

All of internal status and variables of NJW1160M are controlled by I2C BUS interface.
