Features:

`Operating Voltage
`Analog Supply ±4.5 to ±7.5V
`Digital Supply +4.5 to +5.5V
`I2C BUS Interface
`6-Chnnel Master Volume 0 to 79dB, MUTE
`Balance control for L, R-ch 0 to 30dB, MUTE
`Trim Level Control for C, SL, SR, SW-ch 0 to 20dB
`Independent Tone Control (Bass, Treble) for L, R-ch
`Bi-CMOS Technology
Package Outline SDMP30


Pinout

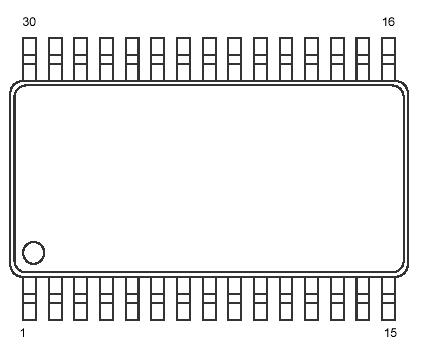

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage 1 V+/V- +7.5/-7.5 V
Supply Voltage 2 VDD 7.0 V
Maximum Input Voltage VIM V+/V-(*) V
Power Dissipation PD 700 mW
Operating Temperature Range Topr -20 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C
(*) For the maximum input voltage less than V+/V-


Description

The NJW1150 is a 6-CHANNEL ELECTRONIC VOLUME, which also includes tone control, balance and trim level control. The NJW1150 is suitable for multi-channel audio system, such as AV amplifier, mini stereo component, speaker system, and others.

All of internal status and variables of NJW1150 are controlled by I2C BUS interface.
