NJW1147L

Features: ·Operating Voltage 8 to 13V·I2C BUS Interface·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)·BBE ViVA High Definition 3D Sound·eala (NJRC Original Surround)·AGC Circuit (It reduces volume difference among input sources.)·Simulated Surround·Bi-CMOS Technology·Package Outline ...

product image

NJW1147L Picture
See larger image
SeekIC No. : 004434624 Detail

NJW1147L: Features: ·Operating Voltage 8 to 13V·I2C BUS Interface·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)·BBE ViVA High Definition 3D Sound·eala (NJRC Original Surround)·AGC Circuit (It re...

NJW1147L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1147L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage 8 to 13V
·I2C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·BBE ViVA High Definition 3D Sound
·eala (NJRC Original Surround)
·AGC Circuit (It reduces volume difference among input sources.)
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SDMP30, SDIP30


Pinout

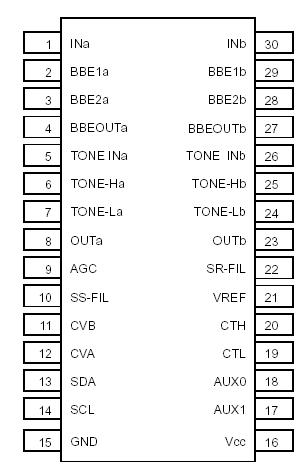

Connection Diagram


Specifications

Parameter Symbol Rating Units
Power Supply Voltage V+ 14 V
Power Dissipation PD 700 W
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Tstg -40 to +125 °C



Description

The NJW1147 is a TV audio processor with BBE ViVA High Definition 3D Sound process. BBE's traditional sound clarity enhancement technology is combined with the new ViVA 3D process to create an authentic and exciting spatial effect. BBE ViVA is compatible with news, music and movie programs as well as video games.

The NJW1147 contains all necessary functions to process TV audio signal such as volume control, tone control, balance, mute, AGC and NJRC's proprietary surround sound process, eala. The eala reproduces a natural surround sound with clear vocal orientation.

The total modes and variables of NJW1147L are controlled by the I2C bus interface.
