NJW1146

Features: ·Operating Voltage 8 to 10 V ·I2C Bus interface ·BBE 0 to +15dB(0.5dB/step) ·eala & simulated stereo ·Master Volume 0 to -80dB, MUTE(0.33dB/step) ·Balance 0 to -30dB, MUTE(1dB/step) ·Tone Control -15 to +15dB(0.5dB/step) ·Bi-CMOS ·Package Outline SDMP30 PinoutSpecifications PARA...

product image

NJW1146 Picture
See larger image
SeekIC No. : 004434623 Detail

NJW1146: Features: ·Operating Voltage 8 to 10 V ·I2C Bus interface ·BBE 0 to +15dB(0.5dB/step) ·eala & simulated stereo ·Master Volume 0 to -80dB, MUTE(0.33dB/step) ·Balance 0 to -30dB, MUTE(1dB/step) ·T...

NJW1146 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1146
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage  8 to 10 V
·I2C Bus interface
·BBE    0 to +15dB(0.5dB/step)
·eala & simulated stereo
·Master Volume  0 to -80dB, MUTE(0.33dB/step)
·Balance   0 to -30dB, MUTE(1dB/step)
·Tone Control   -15 to +15dB(0.5dB/step)
·Bi-CMOS
·Package Outline  SDMP30

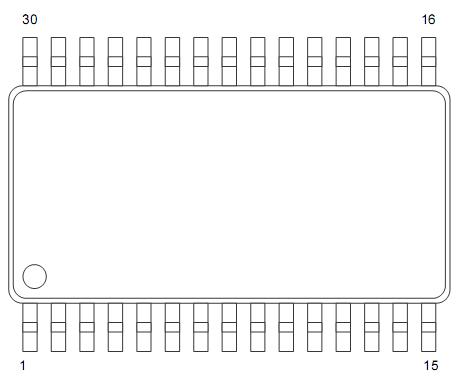

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 12 V
Power Dissipation PD 700 mW
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

NJW1146 is an audio processor with BBE, which also includes Master volume, Balance, Tone Control, eala(original surround), Mute, and Output filter amplifier. All of internal status and variables are controlled by I2C  BUS.
