Product Details

Description

Features:

·Operating Voltage 8 to 13V
·I²C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·Internal 6 Input Audio Selectors and Monitor Output
·The AGC circuit reduces volume difference among input sources.
·Variable AGC Compression Level via I²C (4-levels)
·NJRC Surround "eala" and Simulated Surround
·Variable Surround Effect Level via I²C
·Low Noise VCA
·Bi-CMOS Technology
·Package Outline SOP40-K1

Pinout

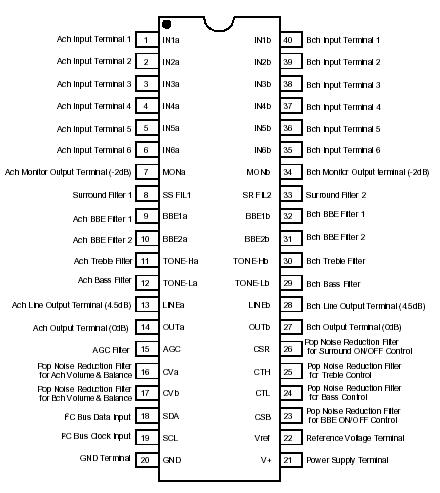

Connection Diagram

Specifications

Parameter	Symbol	Rating	Units
Power Supply Voltage	V⁺	14	V
Power Dissipation	P_D	700	W
Operating Temperature Range	T_opr	-20 to +75	°C
Storage Temperature	T_stg	-40 to +125	°C

Description

The NJW1145 is a audio processor with sound enhancement (BBE). It includes all of the functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1145 performs surround and sound enhancement. The sound enhancement regenerates high definitive and nearly real sound.

All of the internal status and variables of NJW1145 are controlled by I²C BUS interface.
