NJW1144

Features: ·Operating Voltage 8 to 13V ·I2C BUS Interface ·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.) ·Internal 6 Input Audio Selectors and Monitor Output ·The AGC circuit reduces volume difference among input sources. ·Variable AGC Compression Level via I2C (4-levels) ·SRS 3D Ster...

product image

NJW1144 Picture
See larger image
SeekIC No. : 004434621 Detail

NJW1144: Features: ·Operating Voltage 8 to 13V ·I2C BUS Interface ·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.) ·Internal 6 Input Audio Selectors and Monitor Output ·The AGC circuit reduces vo...

NJW1144 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1144
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage    8 to 13V
·I2C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·Internal 6 Input Audio Selectors and Monitor Output
·The AGC circuit reduces volume difference among input sources.
·Variable AGC Compression Level via I2C (4-levels)
·SRS 3D Stereo and Simulated Stereo
·Variable Surround Effect Level via I2C
·Low Noise VCA
·Bi-CMOS Technology
·Package Outline     SOP40-K1


Pinout

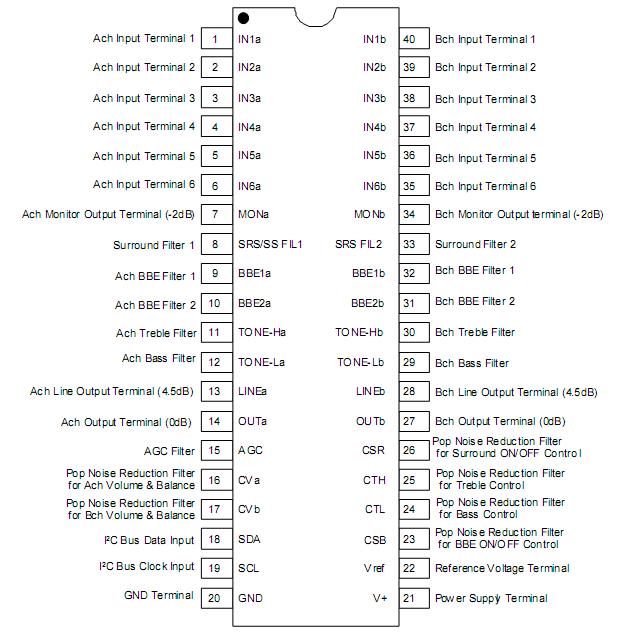

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 14 V
Power Dissipation PD 700 mW
Operating Temperature Range Topr -20 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJW1144 is a sound processor includes all of the  functions required to process the audio signal for TV, such  as tone control, balance, volume, mute, and AGC functions.  Also the  NJW1144 performs BBE sound enhancement  and SRS 3D Stereo. The BBE regenerates high definitive  and nearly real sound, and SRS 3D Stereo regenerates 3D  surround sound with only two speakers.

All of the internal status and variables of NJW1144 are controlled by I2C BUS interface.
