NJW1142

Features: ·Operating Voltage 8 to 10V ·Internal 4 Input Audio Selectors and Monitor Output ·Low Noise VCA ·eala (NJRC Original Surround System) ·Simulated Stereo ·Variable AGC Compression Level via I2C (4-levels) ·Bi-CMOS Technology ·Package Outline SDMP30 PinoutSpecifications Parameter Sy...

product image

NJW1142 Picture
See larger image
SeekIC No. : 004434620 Detail

NJW1142: Features: ·Operating Voltage 8 to 10V ·Internal 4 Input Audio Selectors and Monitor Output ·Low Noise VCA ·eala (NJRC Original Surround System) ·Simulated Stereo ·Variable AGC Compression Level via ...

NJW1142 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1142
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operating Voltage         8 to 10V
·Internal 4 Input Audio Selectors and Monitor Output
·Low Noise VCA
·eala (NJRC Original Surround System)
·Simulated Stereo
·Variable AGC Compression Level via I2C (4-levels)
·Bi-CMOS Technology
·Package Outline          SDMP30

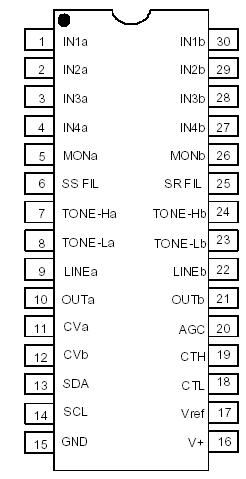

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Units
Power Supply Voltage V+ 12 V
Power Dissipation PD 700 W
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Tstg -40 to +125 °C



Description

The NJW1142 is a sound processor includes all of the  functions required to process the audio signal for TV, such  as tone control, balance, volume, mute, and AGC functions.   Also the  NJW1142 performs eala (NJRC Original  Surround)  which is regenerated 3D surround sound with  only two speakers.  All of the internal status and variables are controlled by I2C BUS interface.
