NJW1139A

Features: · Operating Voltage 8 to 13V· I2C BUS Interface· Bass Boost Function - Adjustable bass boost level 0 to +13dB· AGC Circuit (It reduces volume difference among input sources) - Adjustable compression level by I2C BUS· BBE Sound Enhancement System· TruSurround / SRS 3D Stereo / Simul...

product image

NJW1139A Picture
See larger image
SeekIC No. : 004434618 Detail

NJW1139A: Features: · Operating Voltage 8 to 13V· I2C BUS Interface· Bass Boost Function - Adjustable bass boost level 0 to +13dB· AGC Circuit (It reduces volume difference among input sources) - Adjustab...

NJW1139A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1139A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage 8 to 13V
· I2C BUS Interface
· Bass Boost Function
  - Adjustable bass boost level 0 to +13dB
· AGC Circuit (It reduces volume difference among input sources)
  - Adjustable compression level by I2C BUS
· BBE Sound Enhancement System
· TruSurround / SRS 3D Stereo / Simulated Stereo
· Bi-CMOS Technology
· Package Outline SOP40


Pinout

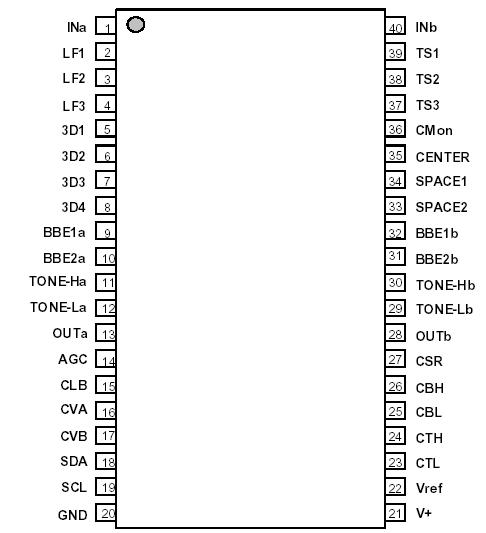

Connection Diagram


Specifications

Supply Voltage V+ ................................................15 V
Power Dissipation PD .....................................700 mW
Operating Temperature Range Topr ......-20 to +75 °C
Storage Temperature Range Tstg ........-40 to +125 °C


Description

The NJW1139A is a sound processor with BBE sound enhancement and TruSurround virtualizer.

NJW1139A includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, simulated stereo and AGC functions.

All of internal status and variables of NJW1139A are controlled by I2C BUS interface.
