Product Details

Description

Features:

·Operating Voltage 8 to 13V
·I²C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·AGC Circuit (It reduces volume difference among input sources.)
·eala(NJRC Original Surround)
·Simulated Surround
·Bi-CMOS Technology
·Package Outline SDIP30, SDMP30

Pinout

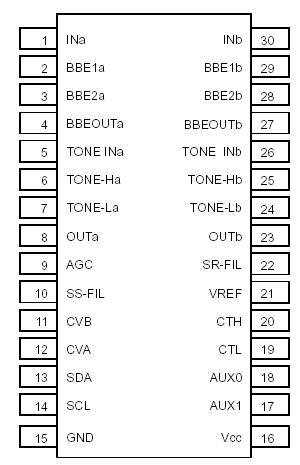

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply Voltage	V⁺	14	V
Power Dissipation	P_D	700	mW
Operating Temperature Range	T_opr	-20 to +75	°C
Storage Temperature Range	T_stg	-40 to +125	°C

Description

The NJW1137 is an audio processor with sound enhancement (BBE). It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, NJRC original surround, and AGC functions.

The NJRC original surround system reproduces natural surround sound and clear vocal orientation. The sound enhancement regenerates high definitive and nearly real sound.

All of internal status and variables of NJW1137L are controlled by I²C BUS interface.
