NJW1136GL1

Features:

·Operating Voltage 8 to 13V
·3ch Output(Lch, Rch, Subwoofer ch) / 2ch Output(Lch, Rch)
·LPF Filter (Adjustable cut off frequency by external parts)
·AGC Circuit (It reduces volume difference among input sources.)
·Adjustable AGC boost level by external parts and AGC compression level by I²C BUS
·eala(NJRC Original Surround System)
·Simulated Stereo
·I²C BUS Interface
·Bi-CMOS Technology
·Package Outline SOP32, DIP32

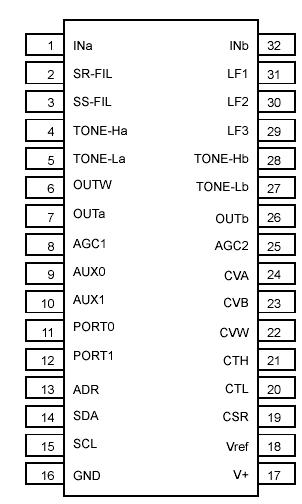

Pinout




Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply Voltage	V+	15	V
Power Dissipation	PD	700	mW
Operating Temperature Range	Topr	-20 to +75	°C
Storage Temperature Range	Tstg	-40 to +125	°C

Description

The NJW1136 is a sound processor with subwoofer output includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1136 includes the LPF for subwoofer output and bass boost function.

The original surround system of NJW1136GL1 reproduces natural surround sound and clear vocal orientation.

All of internal status and variables of NJW1136GL1 are controlled by I²C BUS interface.
