NJW1132M

Output Power :
Output Type :
Available Set Gain :
Common Mode Rejection Ratio (Min) :
THD plus Noise :
Operating Supply Voltage :
Supply Current :
Maximum Power Dissipation :
Packaging :
Product : General Purpose Audio Amplifiers
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 75 C
Package / Case : SDMP


Features:

·Operating Voltage (8 to 13V)
·I²C BUS Interface
·BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
·The AGC circuit reduces volume difference among input sources.
·Matrix Surround
·Bi-CMOS Technology
·Package Outline SDIP30,SDMP30

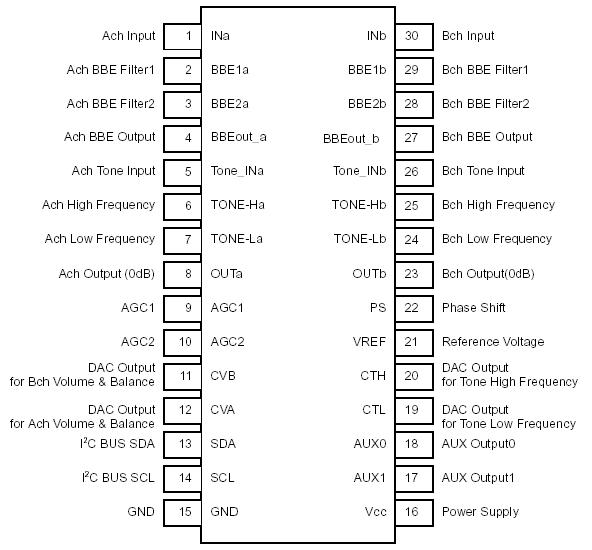

Pinout




Specifications

Parameter	Symbol	Rating	Units
Power Supply Voltage	V+	14	V
Power Dissipation	PD	700	mW
Operating Temperature Range	Topr	-20 to +75	°C
Storage Temperature	Tstg	-40 to +125	°C

Description

The NJW1132 is a sound processor with sound enhancement (BBE). It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1132 performs surround and sound enhancement. The sound enhancement regenerates high definitive and nearly real sound.

All of internal status and variables of NJW1132M are controlled by I²C BUS interface.
