NJW1132A

Features: · Operating Voltage 8 to 13V· I2C BUS Interface· BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)· AGC Circuit (It reduces volume difference among input sources.)· Matrix Surround· Bi-CMOS Technology· Package Outline SDIP30, SDMP30PinoutSpecificationsSupply Voltage V+ ....

product image

NJW1132A Picture
See larger image
SeekIC No. : 004434613 Detail

NJW1132A: Features: · Operating Voltage 8 to 13V· I2C BUS Interface· BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)· AGC Circuit (It reduces volume difference among input sources.)· Matrix S...

NJW1132A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJW1132A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage 8 to 13V
· I2C BUS Interface
· BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
· AGC Circuit (It reduces volume difference among input sources.)
· Matrix Surround
· Bi-CMOS Technology
· Package Outline SDIP30, SDMP30


Pinout

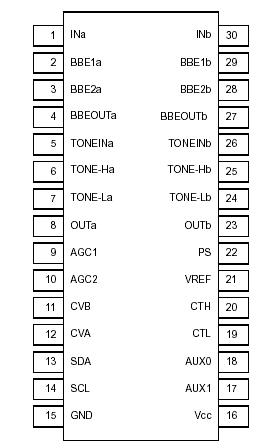

Connection Diagram


Specifications

Supply Voltage V+ ...................................................14 V
Power Dissipation PD ........................................700 mW
Operating Temperature Range Topr .........-20 to +75 °C
Storage Temperature Range Tstg ...........-40 to +125 °C


Description

The NJW1132A is a sound processor with sound enhancement (BBE). It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1132A performs surround and sound enhancement. The sound enhancement regenerates high definitive and nearly real sound.

All of internal status and variables of NJW1132A are controlled by I2C BUS interface.
