Product Details

Description

Features:

· Operating Voltage (8 to 13V)
· I2C BUS Interface
· BBE Sound Enhancement (Low Boost and High Boost: 15dB max.)
· Internal 6 Input Audio Selectors and Monitor Output
· The AGC circuit reduces volume difference among input sources.
· Matrix Surround
· Bi-CMOS Technology
· Package Outline SOP40

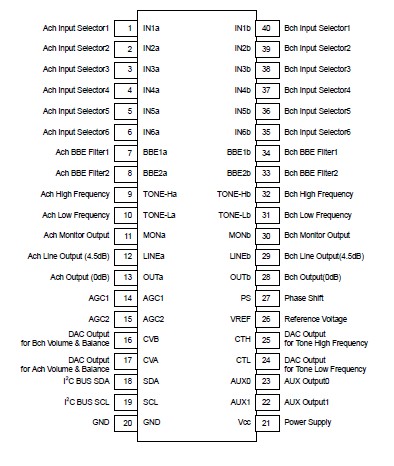

Pinout

Connection Diagram

Specifications

Parameter	Symbol	RATINGS	Unit
Supply Voltage	V⁺	14	V
Power Dissipation	P_D	700	mW
Operating temperature	Topr	-20 to +75
Storage temperature	Tstg	-40 to +125

Description

The NJW1130A is a sound processor with sound enhancement (BBE). It includes all of functions processing audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

Also the NJW1130A performs surround and sound enhancement. The sound enhancement regenerates high definitive and nearly real sound.

All of internal status and variables of NJW1130A are controlled by I2C BUS interface.
