Product Details

Description



Features:

· Operating Voltage: VCC=9V(Analog Block), VDD=5V(Digital Block)
· Digital Delay on chip
· Discrete 5.1ch Input for Dolby Digital
· Master Volume for Center, Surround and Subwoofer Channel: -79 to 0dB/1dB step (0dB = Dolby Level)
· Level Trimmer for Center, Surround and Subwoofer Channel: -31 to 0dB/1dB step (0dB = Dolby Level)
· Karaoke function (Echo, MIC mixing)
· Serial Data Interface (3-wire) DATA, REQ, SCK
· Bi-CMOS Technology
· Package Outline QFP80


Pinout

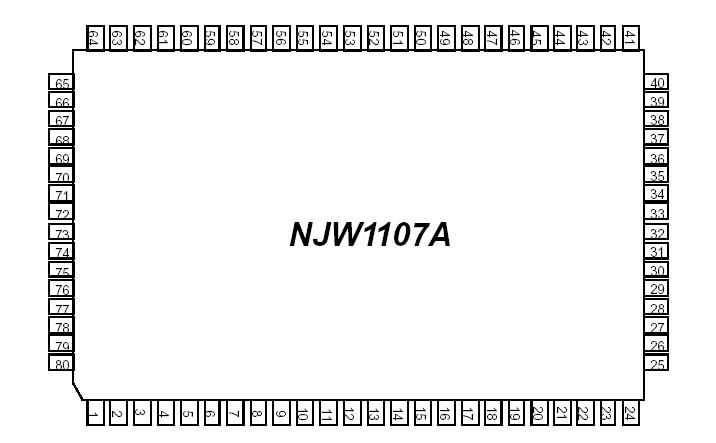

Connection Diagram


Specifications

Supply Voltage VCC .............................................10.5 V
Supply Voltage VDD ...............................................6.5 V
Power Dissipation PD .........................................1.4* W
Operating Temperature Range Topr ........-20 to +75 °C
Storage Temperature Range Tstg .........-40 to +125 °C

*On board


Description

The NJW1107A is a Dolby Pro Logic Surround Decoder with discrete 5.1ch input. It includes Dolby Pro Logic Surround decoder, 4 master volumes, 4 level trimmers and 6 switches.

The 6 switches choose internal Dolby Pro Logic Surround Decoder or discrete 5.1ch inputs. The NJW1107A is most suitable for AV amplifier with discrete 5.1ch inputs for Dolby Digital.

In addition to Dolby Pro Logic Surround function, the NJW1107A performs easily other surround function such as Hall, Live, Disco and others, and echo and microphone mixing functions for Karaoke.
