NJU8719

Features: · 1-channel 1bit Audio Signal Input· Monaural BTL Output· Standby(Hi-Z) Control Function· Operating Voltage : 2.4V to 5.25V· CMOS Technology· Package Outline : SSOP10PinoutSpecifications PARAMETER SYMBOL CONDITIONS UNIT Supply Voltage VDD -0.3 to +5.5 V VDDO -0.3 to +5....

product image

NJU8719 Picture
See larger image
SeekIC No. : 004434589 Detail

NJU8719: Features: · 1-channel 1bit Audio Signal Input· Monaural BTL Output· Standby(Hi-Z) Control Function· Operating Voltage : 2.4V to 5.25V· CMOS Technology· Package Outline : SSOP10PinoutSpecifications ...

NJU8719 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU8719
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1-channel 1bit Audio Signal Input
· Monaural BTL Output
· Standby(Hi-Z) Control Function
· Operating Voltage : 2.4V to 5.25V
· CMOS Technology
· Package Outline : SSOP10


Pinout

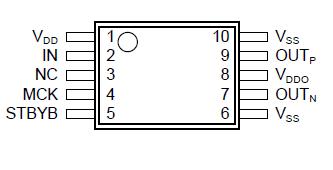

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS UNIT
Supply Voltage VDD -0.3 to +5.5 V
VDDO -0.3 to +5.5 V
Input Voltage Vin −0.3 to VDD + 0.3 V
Operating Temperature Topr -40 to +85
Storage Temperature Tstg -40 to +125
Power Dissipation SSOP10 PD 360* mW

* : Mounted on two-layer board of based on the JEDEC.
Note 1) All voltage values are specified as VSS=0V.
Note 2) If the LSI is used on condition beyond the absolute maximum rating, the LSI may be destroyed. sing LSI within electrical characteristics is strongly recommended for normal operation. Use beyond  he electrical characteristics conditions will cause malfunction and poor reliability.
Note 3) De-coupling capacitors should be connected between VDD-VSS and VDDO-VSS due to the stabilized peration.




Description

The NJU8719 is a monaural BTL output switching driver or class D amplifier. It converts 1bit digital signal input, uch as PWM or PDM signal, to analog signal output with imple external LC low-pass filter.

The NJU8719 realizes very high power-efficiency by lass D operation. Therefore, It is suitable for portable et with speaker.
