Features:

High Precision Detection Voltage ±1.0%
Low Quiescent Current 1.8A typ.
Detection Voltage Range 1.5 ∼ 6.0V(0.1V step)
Delay Time(Built-in Fixed Type) 50ms /100ms /200ms(Built-in Fixed Type)
ON/OFF switch of delay time (DS pin)
Manual Reset 2type: Active "H" / Active "L"
Output Circuit Form NJU7706: Nch. Open Drain type
                                   NJU7707: C-MOS Output
Package Outline SOT-23-5 (MTP5)


Pinout

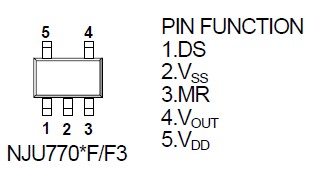

Connection Diagram


Specifications

PARAMETER Symbol Ratings Unit
INPUT Voltage VDD +10 V
OutputVoltage VOUT VSS-0.3 ∼ +10 V
Output Current
IOUT
 50
mA
Power Dissipation PD 200 mW
Operating Temperature e
 TOPR -40 ∼ +85 °C
Storage Temperature TSTG -50 ∼ +125 °C



Description

The NJU7706/07 is a high precision voltage detector with a built-in delay time generator of fixed time.

The detection voltage of NJU7705 is fixed internally with an accuracy of 1.0%, and three delay times 50ms, 100ms and 200ms are available.

NJU7706 is Nch. Open Drain and NJU7707 of output form is a C-MOS output.
