Product Details

Description

Features:

• Single Supply
• Operating Voltage V_DD=2.4 ∼ 5.5V
• Low Operating Current
• Low Saturation Output Voltage V_sat=±0.2V @I_o=±100mA
• C-MOS Technology
• Package Outline FFP12 (2×2×0.85mm)

Pinout

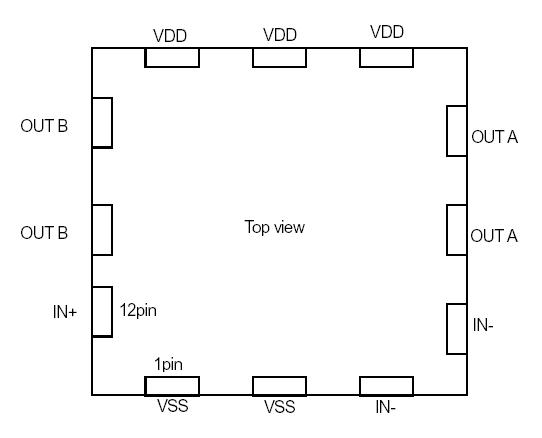

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply Voltage	V_DD	+7.0	V
Input Voltage	V_IN	-0.3 to V_DD+0.3	V
Operating Temperature Range	T_opr	-40 to +85	°C
Storage Temperature Range	T_stg	-50 to +150	°C
Power Dissipation	P_D	300 ⁽¹⁾	mW

1) When mounted on a grass epoxy board.

Description

The NJU7332 is a single-phase DC brushless motor driver IC for very small fan-motor application. It features MOS-FET driver circuit for better saturation characteristics. Slew late of amplifiers and feedback resistors are optimized to achieve low-noise motor operation.

NJU7332 adopt a very small FFP package, therefore it is suitable for micro motor applications.
