Product Details

Description



Features:

• Operating Voltage VDD=3.5 ∼ 15V
• FG Output
• Internal Lock Detect
• Low Operating Current
• Low Saturation Output Voltage Vsat=±0.35V @Io=±200mA
• C-MOS Technology
• Package Outline VSP10


Pinout

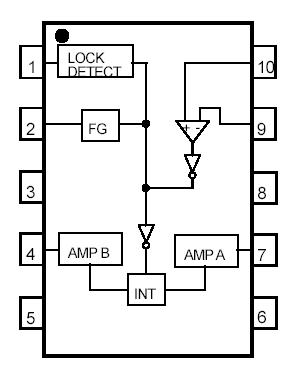

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage VDD -0.5 to +7.0 V
Input Voltage VIN VSS-0.5 to VDD+0.5 V
Output Voltage VO -0.5 to VDD+0.5 V
Input Current IIN ±10 mA
Output Current IO ±25 mA
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -55 to +125 °C



Description

The NJU7327 is a single-phase DC brushless motor driver IC for small fan-motor and high power applications. It features MOS-FET driver circuit for better saturation characteristics. Slew late of amplifiers and feedback resistors are optimized to achieve low-noise motor operation. The NJU7327 also includes frequency generator (FG) output for various control needs.
