NJU7045

Features: Operating Voltage: 2.2V to 5.5VInput/Output Full-SwingHigh Output Current: 40mA at VO=0VInput Offset Voltage: VIO=10mV max.Wide Input Common Mode Voltage Range: VSS to VDDOperating Current: (Active)IDD=350A typ. (at VDD=3V) (Shutdown) IDD=0.9A typ. (at VDD=2.2V to 5.5V)High Input Impedan...

product image

NJU7045 Picture
See larger image
SeekIC No. : 004434499 Detail

NJU7045: Features: Operating Voltage: 2.2V to 5.5VInput/Output Full-SwingHigh Output Current: 40mA at VO=0VInput Offset Voltage: VIO=10mV max.Wide Input Common Mode Voltage Range: VSS to VDDOperating Current...

NJU7045 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJU7045
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Operating Voltage:                                       2.2V to 5.5V
Input/Output Full-Swing
High Output Current:                                   40mA at VO=0V
Input Offset Voltage:                                   VIO=10mV max.
Wide Input Common Mode Voltage Range: VSS to VDD
Operating Current: (Active)                          IDD=350A typ. (at VDD=3V)
                                  (Shutdown)                   IDD=0.9A typ. (at VDD=2.2V to 5.5V)
High Input Impedance:                                1T Typ.
Low Input Bias Current:                               IIB=1pA typ.
Ground Sensing
Tiny Package:                                               TVSP8, MTP6


Pinout

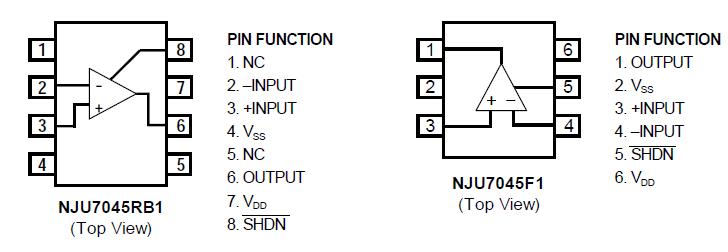

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VDD 7 V
Common Mode Input Voltage Range VICM 0 to 7 (Note 1) V
Differential Input Voltage Range VID ±7 V
Power Dissipation PD 320 [TVSP8]
410 [TVSP8] (Note 2)
540 [TVSP8] (Note 3)
200 [ MTP6 ]
410 [ MTP6 ] (Note 2)
580 [ MTP6 ] (Note 3)		 mW
Output Current IO ±75 [TVSP8, MTP6] mA
Operating Temperature Range Topr -40 to +85
Storage Temperature Range Tstg -55 to +125
(Note 1) For supply voltage less than 7V, the absolute maximum input voltage is equal to the supply voltage.
(Note 2) On the PCB " EIA/JEDEC (76.2x11.43x1.6mm, two layers, FR-4) "
(Note 3) On the PCB " EIA/JEDEC (76.2x11.43x1.6mm, four layers, FR-4) "


Description

The NJU7045 is a C-MOS operational amplifier permitting a full-swing input and output in full-swing under high load.

Based on C-MOS technology, there are excellent features of NJU7045 such as high output current, low current consumption, low operating voltage, and very high input impedance.
