Product Details

Description



Features:

Operating Voltage:                                      2.2V to 5.5V
Input/Output Full-Swing
High Output Current:                                  40mA at VO=0V
Input Offset Voltage:                                   VIO=10mV max.
Wide Input Common Mode Voltage Range: VSS to VDD
Operating Current:                                     IDD=350µA typ. (at VDD=3V)
High Input Impedance:                               1T Typ.
Low Input Bias Current:                              IIB=1pA typ.
Ground Sensing
Tiny Package:                                              MTP5

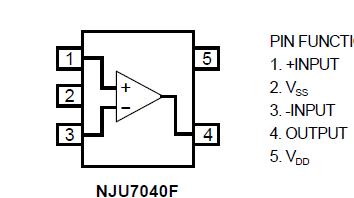

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VDD 7 V
Common Mode Input Voltage Range VICM 0 to 7 (Note 1) V
Differential Input Voltage Range VID ±7 V
Power Dissipation PD 200 [MTP5]
390 [MTP5] (Note 2)
520 [MTP5] (Note 3)		 mW
Output Current IO ±75 [MTP5] mA
Operating Temperature Range Topr -40 to +85
Storage Temperature Range Tstg -55 to +125
(Note 1) For supply voltage less than 7V, the absolute maximum input voltage is equal to the supply voltage.
(Note 2) On the PCB " EIA/JEDEC (76.2x11.43x1.6mm, two layers, FR-4) "
(Note 3) On the PCB " EIA/JEDEC (76.2x11.43x1.6mm, four layers, FR-4) "


Description

The NJU7040 is a C-MOS operational amplifier permitting a full-swing input and output in full-swing under high load.

Based on C-MOS technology, there are excellent features of NJU7040 such as high output current, low current consumption, low operating voltage,and very high input impedance.
